I Have a Dream

This is the app you'll buid.

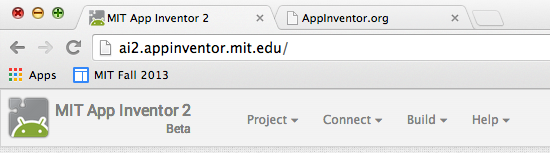

With the new version of App Inventor (AI2), you don't need to download anything to your computer. Just open a browser (Chrome, Firefox, or Safari) and go to ai2.appinventor.mit.edu and start creating apps.

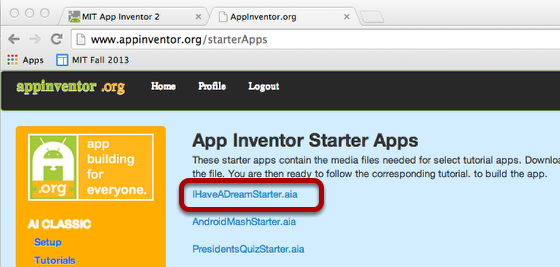

Open another window or tab and go to appinventor.org/starterApps. Download the IHaveADreamStarter.aia starter app to your computer. This app only has media files, no code. The media files are the pictures and speeches (.mp3 files) for this app. Note that you can upload any media you want into an App Inventor app, the starter app is here only for convenience.

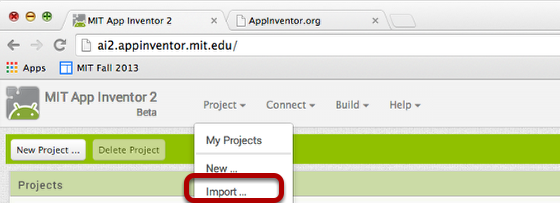

In App Inventor, click on Project | Import and choose the file you just downloaded.

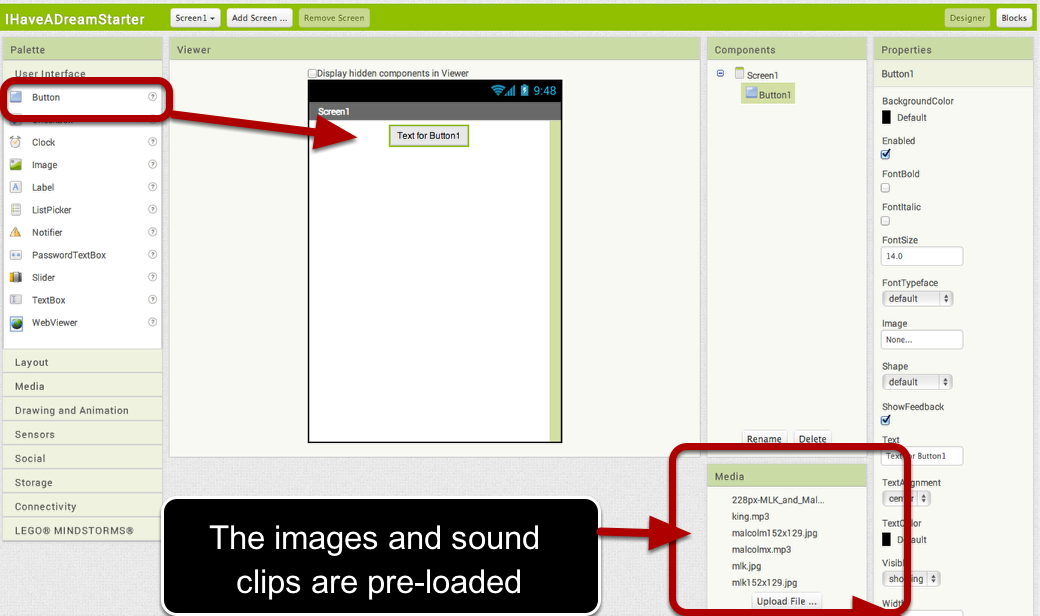

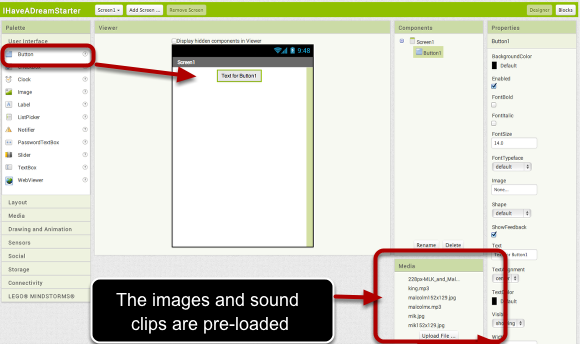

When you import the starter app (or create a new project)), the App Inventor designer appears. This is where you design the user interface. The starter app has the images pre-loaded into the app, but they are not yet part of the user interface. So drag out a button component, then in the next step you'll place a picture on top of it.

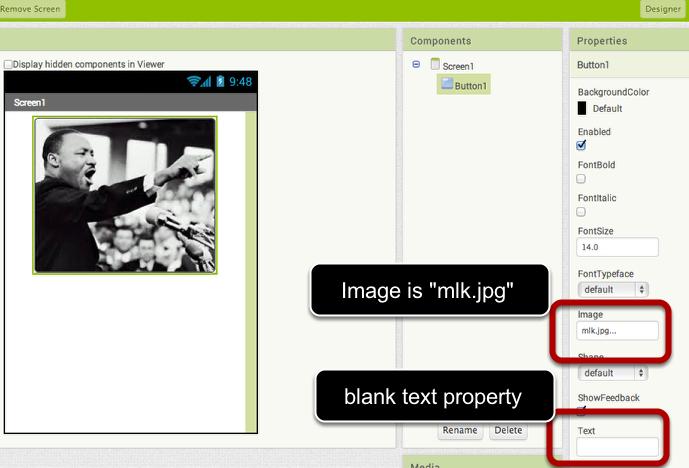

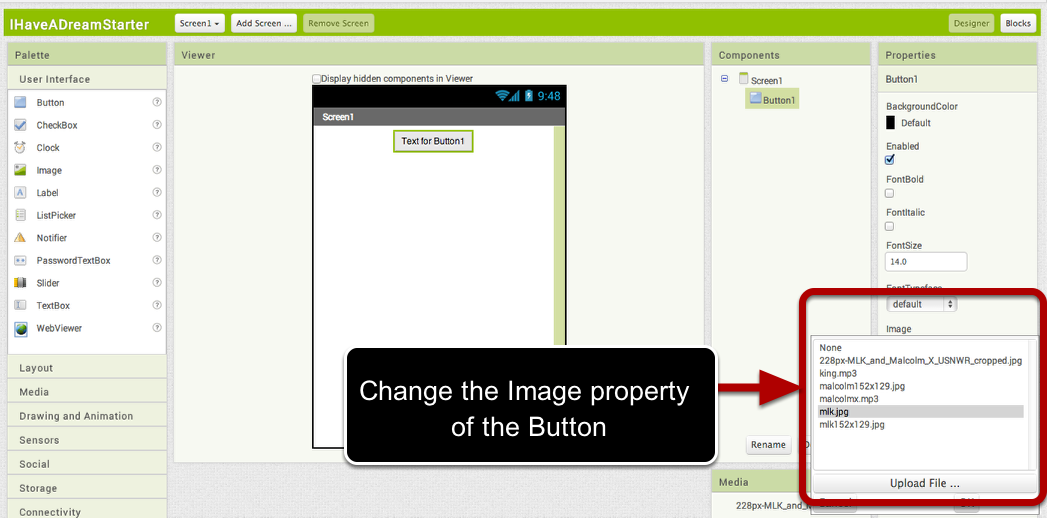

Click on the Image property of the Button1 then choose the file mlk.jpg (the big picture of MLK). Also, blank out the Text property of Button1 so the text doesn't appear.

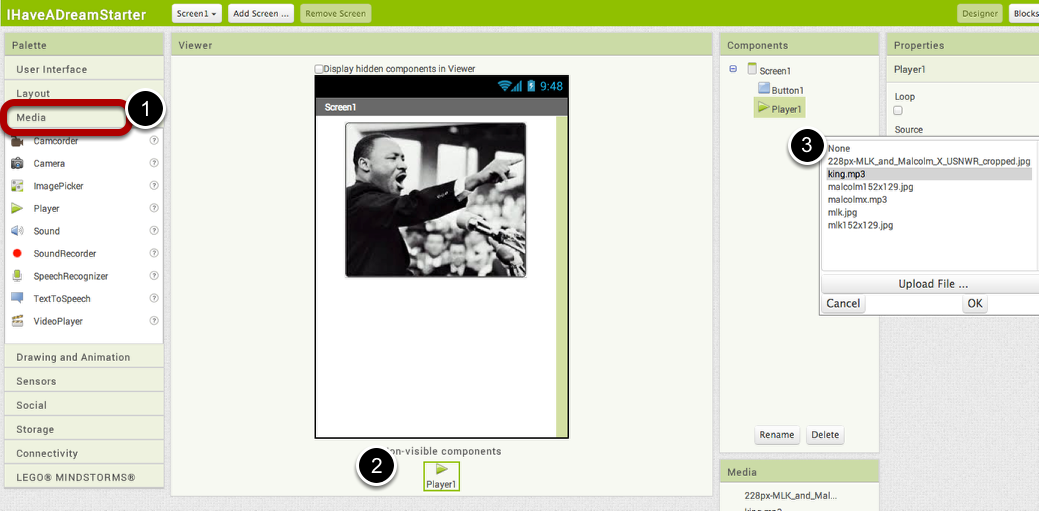

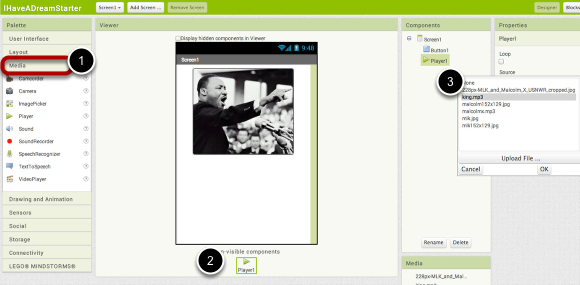

You still need to set things up so you can play the sound clip of MLK's speech. Open the Media drawer (1) and drag out a Player component (2). Then set the "Source" property of the Player to king.mp3 (a short clip from "I Have a Dream!" speech). The user interface is ready to go!

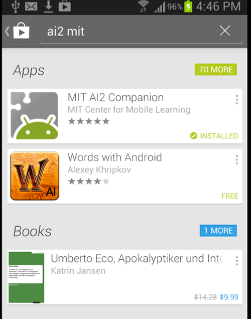

On your Android phone or tablet, go to the Play Store and download the MIT AI2 Companion. This app will allow you to test your App Inventor apps as you build them. Search for "ai2 mit companion" and you should find it. The download and install (on your device, not computer!). MAKE SURE TO GET THE AI2 companion.

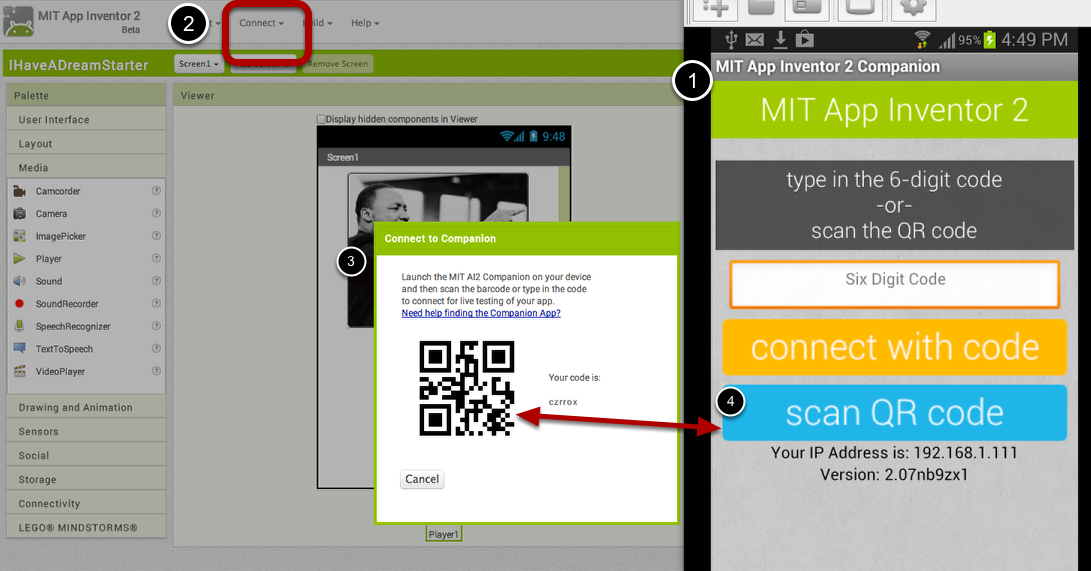

When you start the Companion on your phone, it will look like (1). Back in App Inventor, choose "Connect" (2) then "AI Companion. This will cause a QR code to appear (3) You can then scan the QR code (4) with your phone to see your app live. NOTE: for live testing to work, both your computer and phone/tablet must be connected to the same WiFi station. Using WiFi is the easiest way to connect, but if you're at school/work you may have firewall issues. If so, you can connect using a USB cable. If you don't have an Android device, you can connect your app to an emulator that runs on your computer. For any setup issues, please see http://appinventor.mit.edu/explore/ai2/setup.html

When you scan the QR code, your app should appear on your phone/tablet. Note that, at this point, even if you click MLK, the speech won't play. Your app has the sound clip, but it doesn't know that clicking the button should play it. It is time to code the behavior.

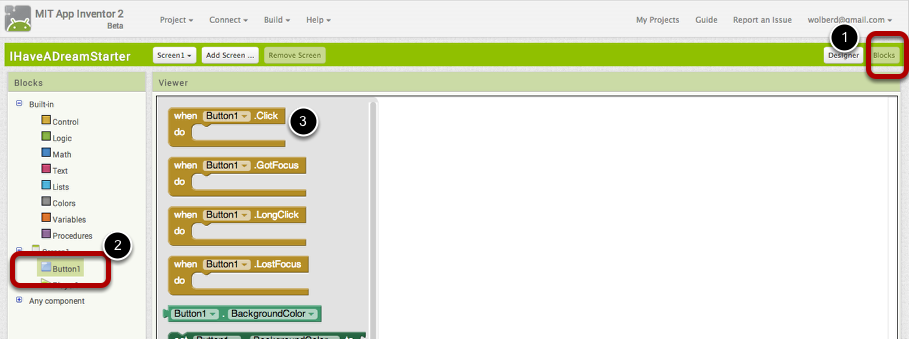

Click on "Blocks" in the right top to move from the UI Designer to the blocks editor (1). Then click on the Button drawer (2) and drag out the "Button1.Click" event (3).

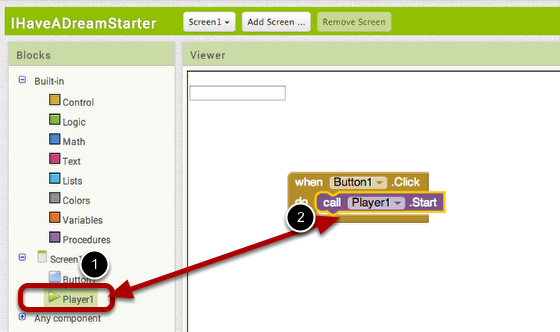

Open the Player1 drawer (1) and drag out a "Player1.Start" block. Place it within the Button1.Click (2). You have just created an "event handler". You have specified that on the "Button1.Click" event, the app should start the speech.

Event handlers are the key ingredient of all apps, To learn more, see http://www.appinventor.org/eventHandlers

Is your phone still connected? If so, tap on the picture of MLK. Does the speech play?

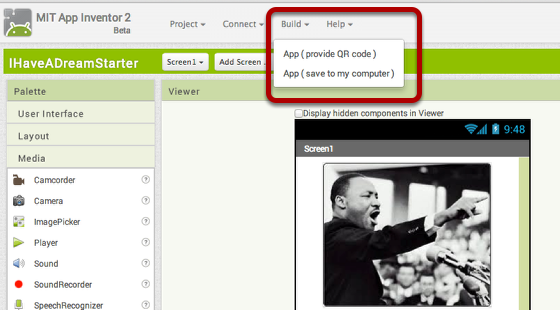

Your app is only working within the testing app, the Companion. If you disconnected from WiFi, the app wouldn't be on your phone, and so far you can't send it to a friend. So go back to the Designer and choose "Build | App (save to my computer)" This will download a ".apk" file, an executable Android app. Once you download it you can email it to yourself or a friend. Then you and your friends can open the email on their Android phone and install the attachment. Note: on some Android phones, you need to change a security setting to allow "Unknown Sources". This allows the device to install apps from places other than the Play Store.

Congratulations! You've built your first app!

Now that you have your feet wet, let's make the app more fun. MLK and Malcolm X were Civil Rights leaders of great contrast. Let's build an app that also plays an app by Malcolm X in order to show this contrast. You'll need to modify the UI, then the behavior. Behavior-wise, things will become more complicated as you'll need to make sure the speeches don't overlap.

choose Project | SaveAs and name your new app something else (e.g., DreamWithNoName).

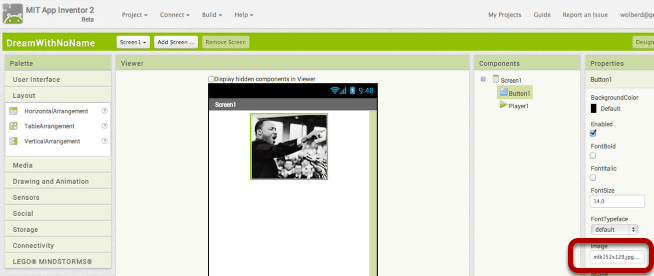

Click on the Button1 component and change its Image property to "MLK152x129.jpg". This will make room for Malcolm X.

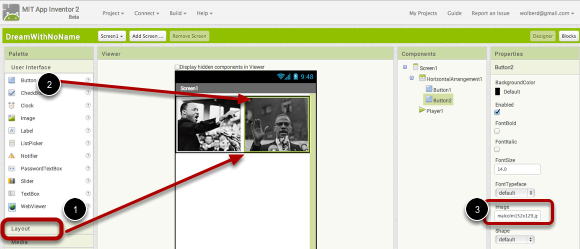

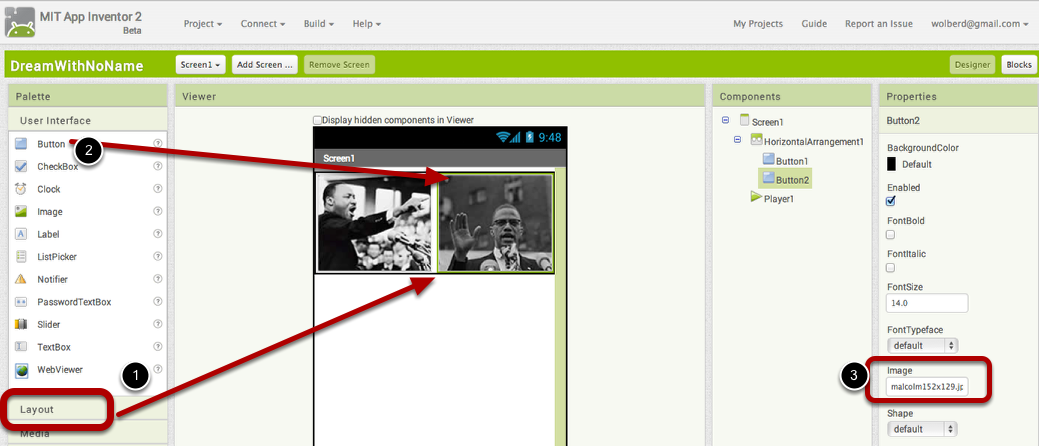

Drag in a HorizontalArrangement from the Layout drawer, place the MLK button in it, then add a new Button in it. Change the new Button image property to the picture of Malcolm X.

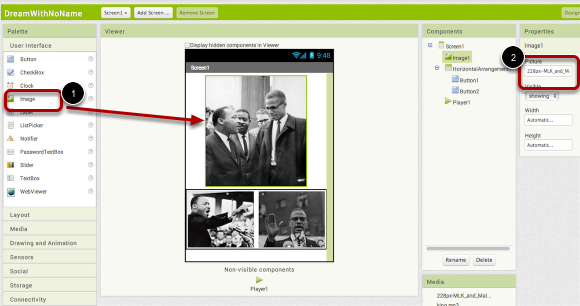

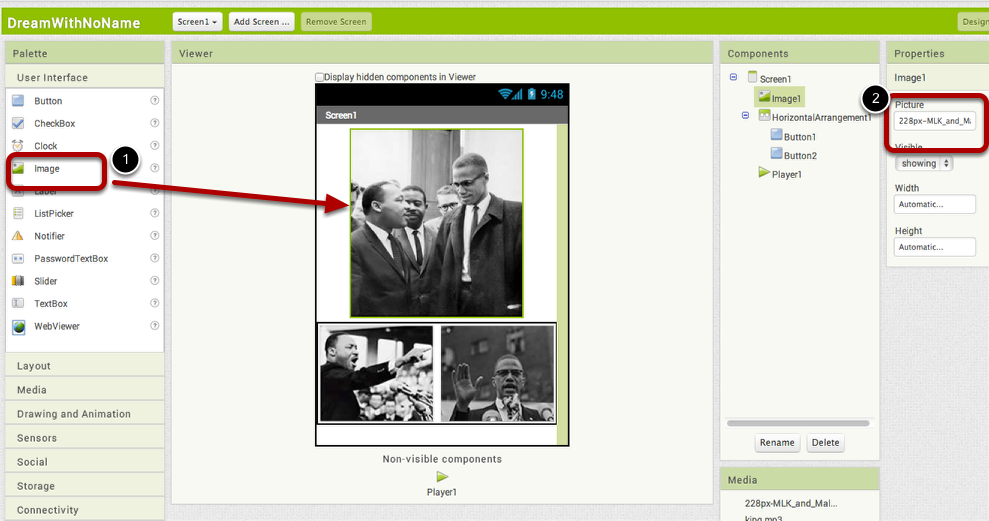

Add an Image component (1) then set its Picture property to the picture of both leaders Note that the top component is an Image not a Button because nothing should happen when the user clicks it.

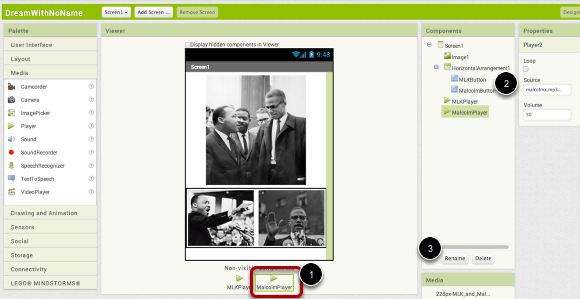

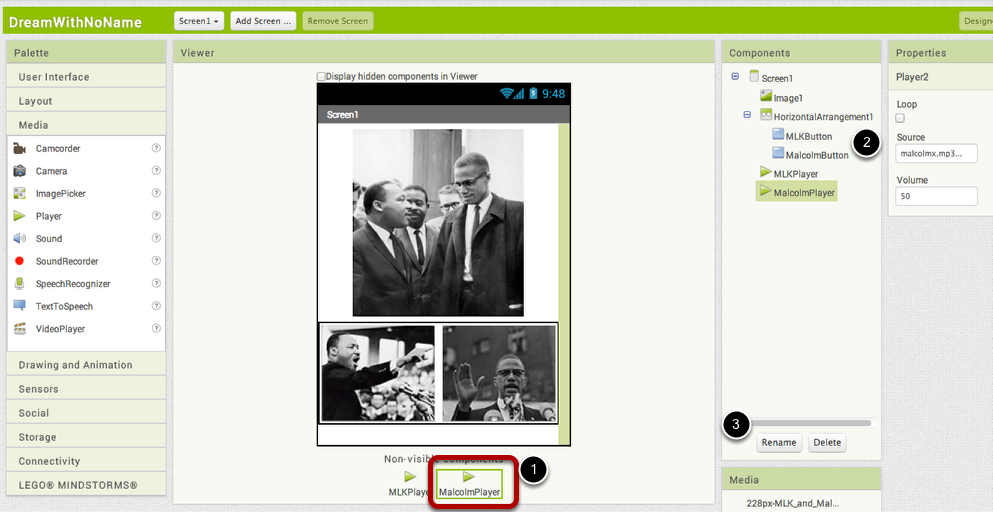

Drag out another Player component (1) and set its Source property to Malcolm's spech (2). Then rename the components (3) so we can distiguish them easily in the blocks editor. A rule-of-thumb is to give a descriptive name with a suffix which is the component type, e.g., MalcolmPlayer.

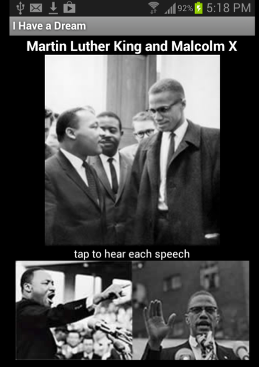

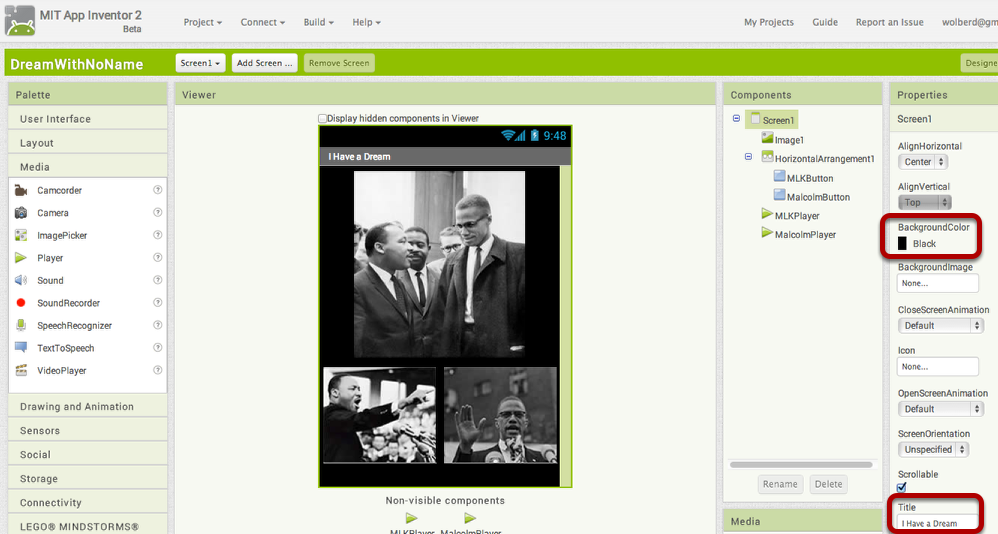

To complete the UI, set the BackgroundColor to black and set the screen's Title property. Now you're ready to program the behavior.

Open the Blocks editor. Note that the Button1.Click event and other blocks have been renamed based on your renames in the designer.

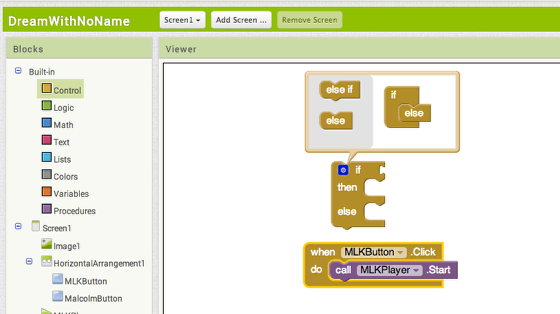

First, focus on the MLK button. The behavior we want is for the first click to start the speech, the next one pause it, next one start it, and so on. So you don't always want the same thing to happen when the button is clicked. To program this, you use an if-else block. If-else allows the app to ask questions, such as, "is the speech already playing?". To code this, drag out an if-block from the Control drawer, then click on the blue "modifier" icon. The modifier allows you to add branches. In this case, there are two possibilities, start or pause, so set it up with the "then" branch and the "else" branch.

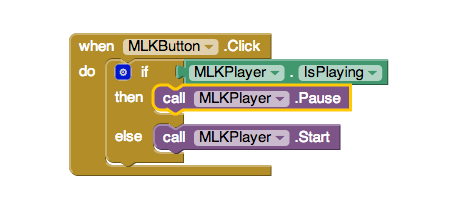

Place the if-else block in the event handler. Then drag out an MLKPlayer.IsPlaying property block from the MLKPlayer drawer. This block is true if the speech is playing, false if not. If it is playing, you want to pause the speech, so drag out this block from MLKPlayer. If it is not playing, the "else" branch will be taken, so MLKPLayer.Start is called.

In this code, you're seeing two new things, both fundamental to software. First is the conditional (if-else) block. Conditional blocks provide the mechanism for the app to ask questions, the basis of artificial intellgence. The second new thing is you are checking a component property in the blocks. You set a few properties in the designer (e.g., the Screen.Title). Here you are checking the Player's IsPlaying property in the blocks. For more on these fundamental topics, see these notes on conditionals and component properties.

Is your phone/tablet still connected? Test this updated behavior to see if it works.

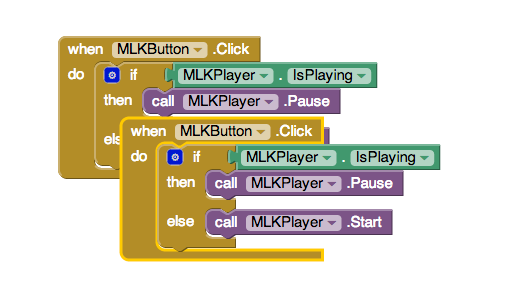

You want the Malcolm button to behave similarly to the MLK button, so copy-paste. Open the Blocks editor, then select the MLKButton.Click event handler Copy and paste, using command-c and command-v on Mac (ctrl-c and v on Windows).

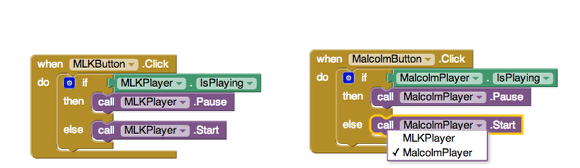

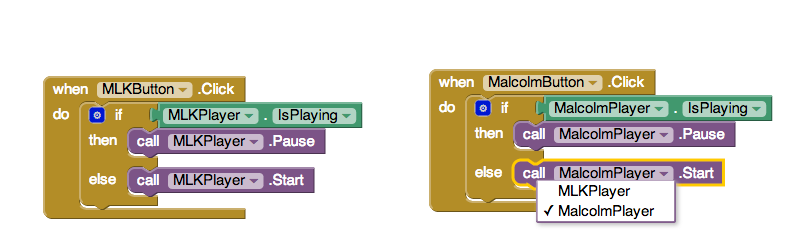

Using the upside down triangle widget, switch the copied blocks to refer to MalcolmPlayer instead of MLK.

Test this behavior. You should be able to start and pause the speeches independently. But what happens if you click MLK then Malcolm? Do the speeches overlap?

You just need to pause Malcolm when MLK speaks, and vice-a-versa. The final blocks for the app are shown above with the additional blocks circled.

This app is simple, but indicative of the architecture of most apps. This one consists of two event handlers. Each event handler consists of an event (a click in this case) and a response which is a sequence of blocks (they're executed in order). Some blocks in the response are only conditionally executed.

So you've not only created an app, you've learned some programming lingo. Next time your hanging out with your friends, smack talk a bit about "event handlers" and "if-else conditionals".

For more conceptual background for this app, see the notes on event handlers, conditionals and component properties. For a next tutorial to try, see http://www.appinventor.org/paintpot2-steps
